Product Family Overview


Casters For Self-Dumping Hoppers (D & H)
SERIES: H-CK,D-CK

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**


D-100-LD + D-CK4-GFN-2 + PLID-D-100


Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**


D-100-LD + D-CK4-GFN-2 + PLID-D-100


Additional Models In This Family

Hopper Caster Kits Upgrade Benefit Chart

**Weight of hopper must be considered when calculating usable capacity**
Note: Hardware Already Included
Upgraded Hopper
Caster Kit
Model #'s
Caster
Size Total
Capacity
New Tread
Type
Casters
In Kit
Description Added
Benefits
FOR H-SERIES HOPPERS, -25, -50
H-CK3-C11C CST-F34-6X2DK-S 6X2 1800 HIGH QUALITY TPR (DK) (GRAY) CST-F34-6X2DK-S (1) | CST-F34-6X2DK-R (2) Made of high grade thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR (WHEEL) WARRANTY
H-CK3-C12C CST-F34-6X2DT-S 6X2 2700 HIGH GRADE POLY (DT) (GREEN) CST-F34-6X2DT-S (1) | CST-F34-6X2DT-R (2) Made with a hi-tech proprietary polyurethane tread (DT) and designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR (WHEEL) WARRANTY
H-CK3-C13C CST-F34-6X2SI-S 6X2 3750 PREMIUM GRADE POLY (SI) (ORANGE) CST-F34-6X2SI-S (1) | CST-F34-6X2SI-R (2) Made with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED |REJECTS DEBRIS | EXCELLENT FLOOR PRESERVATION | SMOOTH & QUIET RIDE | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR (WHEEL) WARRANTY
H-CK3-C24C CST-HLD2-6X2GFN-S 6X2 3750 HIGH GRADE GFN (RX) (BLACK) CST-HLD2-6X2GFN-S (1) | CST-HLD2-6X2GFN-R (2) Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
H-CK3-C23C CST-HHD-6X2GFN-S 6X2 6000 HIGH GRADE HD GFN (RX) (BLACK) CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
FOR H-SERIES HOPPERS, -100, -150
H-CK4-C11C CST-F34-6X2DK-S 6X2 2400 HIGH QUALITY TPR (DK) (GRAY) CST-F34-6X2DK-S (1) | CST-F34-6X2DK-R (2) | CST-F34-6X2DK-SWB (1) Made of high grade thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR (WHEEL) WARRANTY
H-CK4-C12C CST-F34-6X2DT-S 6X2 3600 HIGH GRADE POLY (DT) (GREEN) CST-F34-6X2DT-S (1) | CST-F34-6X2DT-R (2)| CST-F34-6X2DT-SWB (1) Made with a hi-tech proprietary polyurethane tread (DT) and designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. HI-TECH NON-MARKING TREAD | EASY ROLL PERFORMANCE | 100% MECHANICAL BOND TO CORE | LONGER LASTING TREAD LIFE | RESISTS DEBRIS | GREAT FLOOR PRESERVATION | 3 YEAR (WHEEL) WARRANTY
H-CK4-C13C CST-F34-6X2SI-S 6X2 5000 PREMIUM GRADE POLY (SI) (ORANGE) CST-F34-6X2SI-S (1) | CST-F34-6X2SI-R (2) | CST-F34-6X2SI-SWB (1) Made with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED |REJECTS DEBRIS | EXCELLENT FLOOR PRESERVATION | SMOOTH & QUIET RIDE | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR (WHEEL) WARRANTY
H-CK4-C24C CST-HLD2-6X2GFN-S 6X2 5000 HIGH GRADE GFN (RX) (BLACK) CST-HLD2-6X2GFN-S (1) | CST-HLD2-6X2GFN-R (2) | CST-HLD2-6X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
H-CK4-C23C CST-F40-6X2DK-S 6X2 8000 HIGH GRADE HD GFN (RX) (BLACK) CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | CST-HHD-6X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
FOR D-SERIES HOPPERS
D-CK4-C32C CST-F40-6X2DK-S 6X2 2400 HIGH QUALITY TPR (DK) (GRAY) CST-F40-6X2DK-S (1) | CST-F40-6X2DK-R (2) | CST-F40-6X2DK-SWB (1) Robust kingpinless series matched with high-tech thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. KINGPINLESS | HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR WARRANTY
D-CK4-C32D CST-F40-8X2DK-S 8X2 2700 HIGH QUALITY TPR (DK) (GRAY) CST-F40-8X2DK-S (1) | CST-F40-8X2DK-R (2) | CST-F40-8X2DK-SWB (1) Robust kingpinless rigging matched with high-tech thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. NON-MARKING | CHEMICAL & MOISTURE RESISTANT | SMOOTH RIDE PERFORMANCE | QUIET OPERATION | PRECISION BALL BEARINGS
D-CK4-C33C CST-F40-6X2DT-SWB_A.jpg 6X2 3600 HIGH GRADE POLY (DT) (GREEN) CST-F40-6X2DT-S (1) | CST-F40-6X2DT-R (2) | CST-F40-6X2DT-SWB (1) Robust kingpinless rigging matched with a hi-tech proprietary polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. KINGPINLESS | HI-TECH NON-MARKING TREAD | EASY ROLL PERFORMANCE | 100% MECHANICAL BOND TO CORE | LONGER LASTING TREAD LIFE | RESISTS DEBRIS | GREAT FLOOR PRESERVATION | 3 YEAR WARRANTY
D-CK4-C33D CST-F40-8X2DT-S 8X2 4000 HIGH GRADE POLY (DT) (GREEN) CST-F40-8X2DT-S (1) | CST-F40-8X2DT-R (2) | CST-F40-8X2DT-SWB (1) Robust kingpinless series matched with a hi-tech proprietary polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. KINGPINLESS | HI-TECH NON-MARKING TREAD | EASY ROLL PERFORMANCE | 100% MECHANICAL BOND TO CORE | LONGER LASTING TREAD LIFE | RESISTS DEBRIS | GREAT FLOOR PRESERVATION | 3 YEAR WARRANTY
D-CK4-C34C CST-F40-6X2SI-S 6X2 6000 PREMIUM GRADE POLY (SI) (ORANGE) CST-F40-6X2SI-S (1) | CST-F40-6X2SI-R (2) | CST-F40-6X2SI-SWB (1) Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. KINGPINLESS | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED | SMOOTH & QUIET RIDE | EXCELLENT FLOOR PRESERVATION | REJECTS DEBRIS | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR WARRANTY
D-CK4-C34D CST-F40-8X2SI-S 8X2 8000 PREMIUM GRADE POLY (SI) (ORANGE) CST-F40-8X2SI-S (1) | CST-F40-8X2SI-R (2) | CST-F40-8X2SI-SWB (1) Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. KINGPINLESS | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED | SMOOTH & QUIET RIDE | EXCELLENT FLOOR PRESERVATION | REJECTS DEBRIS | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR WARRANTY
D-CK4-C15C CST-FXE-6X2DSI-S 6X2 6000 PREMIUM GRADE "DUAL" WHEEL POLY (SI) (ORANGE) CST-FXE-6X2DSI-S (2) | CST-FXE-6X2DSI-R (2) The new X-Treme Ergo is an industry leader in ERGONOMIC PERFORMANCE. Made of premium grade polyurethane, the independent dual wheels allow for sharp turns with the smallest radius. Coupled with an industry changing "double" precision raceway, for one of the tightest swivels produced. REDUCES PUSH/PULL FORCE BY UP TO 62% |HIGH-QUALITY NON-MARKING PROPRIETARY TREAD | 100% MAINTENANCE-FREE | STATE OF THE ART "DOUBLE" PRECISION SEALED RACEWAY | DUAL WHEELS - FOR PRECISE TURNING RADIUS | INDUSTRY LEADING CAPACITY | 6203 PREMIUM SEALED PRECISION BALL BEARINGS | LIGHT-WEIGHT RUST RESISTANT ALUMINUM CORE | HIGH QUALITY, RUST RESISTANT CHROME PLATED FINISH | 3 YEAR WARRANTY
D-CK4-C15D CST-FXE-8X2DSI-S 8X2 8000 PREMIUM GRADE "DUAL" WHEEL POLY (SI) (ORANGE) CST-FXE-8X2DSI-S (2) | CST-FXE-8X2DSI-R (2) The new X-Treme Ergo is an industry leader in ERGONOMIC PERFORMANCE. Made of premium grade polyurethane, the independent dual wheels allow for sharp turns with the smallest radius. Coupled with an industry changing "double" precision raceway, for one of the tightest swivels produced. REDUCES PUSH/PULL FORCE BY UP TO 62% |HIGH-QUALITY NON-MARKING PROPRIETARY TREAD | 100% MAINTENANCE-FREE | STATE OF THE ART "DOUBLE" PRECISION SEALED RACEWAY | DUAL WHEELS - FOR PRECISE TURNING RADIUS | INDUSTRY LEADING CAPACITY | 6203 PREMIUM SEALED PRECISION BALL BEARINGS | LIGHT-WEIGHT RUST RESISTANT ALUMINUM CORE | HIGH QUALITY, RUST RESISTANT CHROME PLATED FINISH | 3 YEAR WARRANTY
D-CK4-C24C CST-HLD2-6X2GFN-S 6X2 5000 HIGH GRADE GFN (RX) (BLACK) CST-HLD2-6X2GFN-S (1) | CST-HLD2-6X2GFN-R (2) | CST-HLD2-6X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
D-CK4-C24D CST-HLD2-8X2GFN-S 8X2 5000 HIGH GRADE GFN (RX) (BLACK) CST-HLD2-8X2GFN-S (1) | CST-HLD2-8X2GFN-R (2) | CST-HLD2-8X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND
D-CK4-C23C CST-HHD-6X2GFN-S 6X2 8000 HIGH GRADE HD GFN (RX) (BLACK) CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | CST-HHD-6X2GFN-SWB (1) Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY
Weight Of Hopper Must Be Considered When Calculating Usable Capacity

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Casters for Self-Dumping Hoppers
Model Image PDF Caster Size Capacity (lbs.) Caster Description Qty. Per Order Wt. (lbs.)
Caster for H-Style Hoppers, -25 & -50
H-CK3-C11C Warranty PDF 6"x2" 1,800 Thermoplastic Rubber 3 18

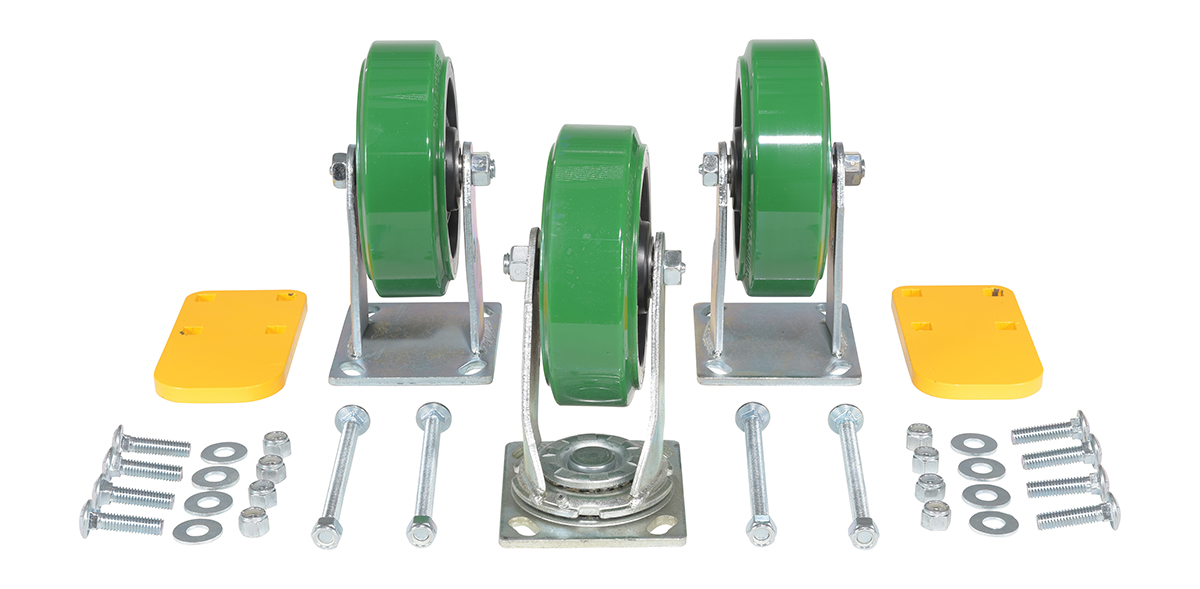

H-CK3-C12C Warranty PDF 6"x2" 2,700 Pure Polyurethane 3 18

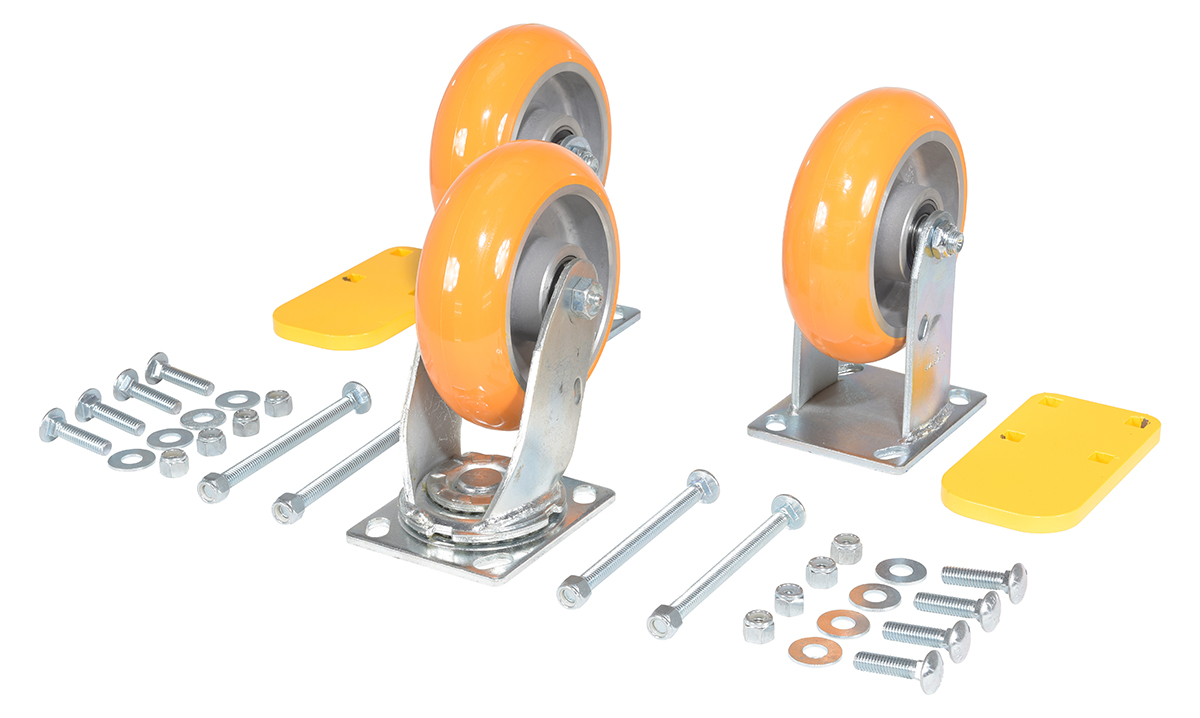

H-CK3-C13C Warranty PDF 6"x2" 3,750 Polyurethane 3 18

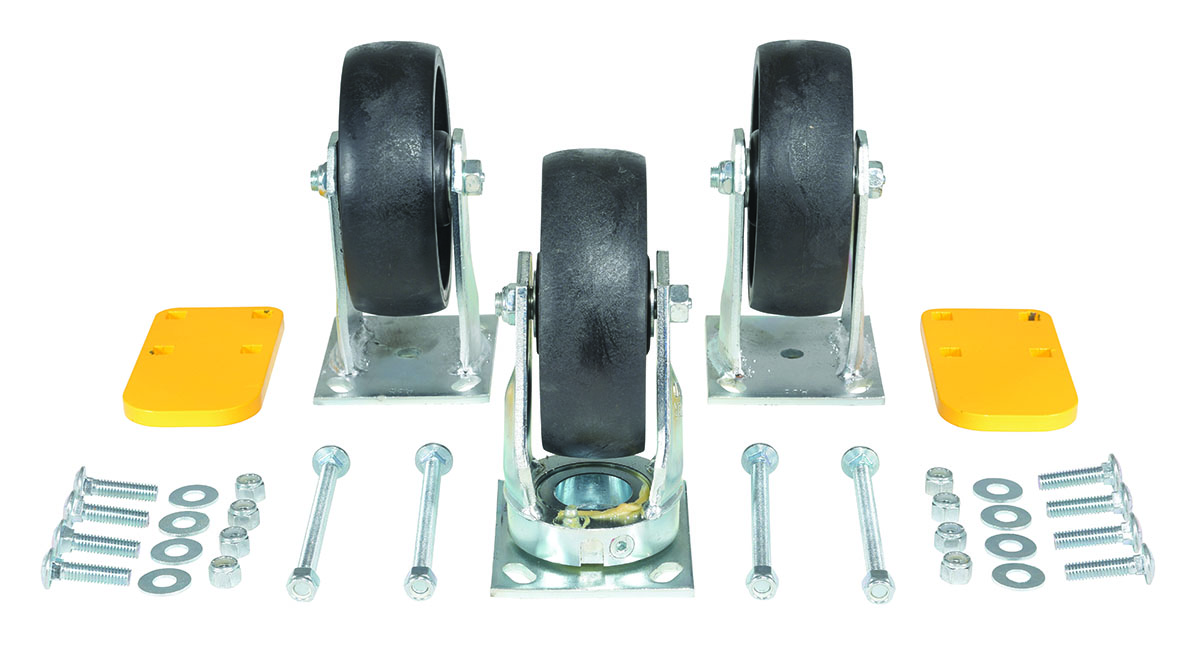

H-CK3-C23C Warranty PDF 6"x2" 8,000 Glass Filled Nylon 3 22
H-CK3-C24C Warranty PDF 6"x2" 3,750 Glass Filled Nylon 3 21

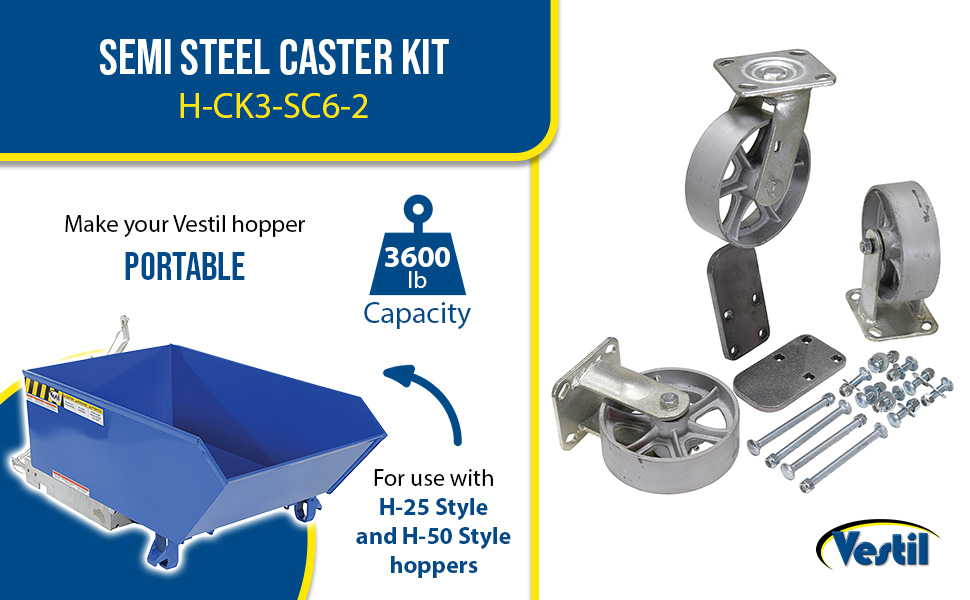

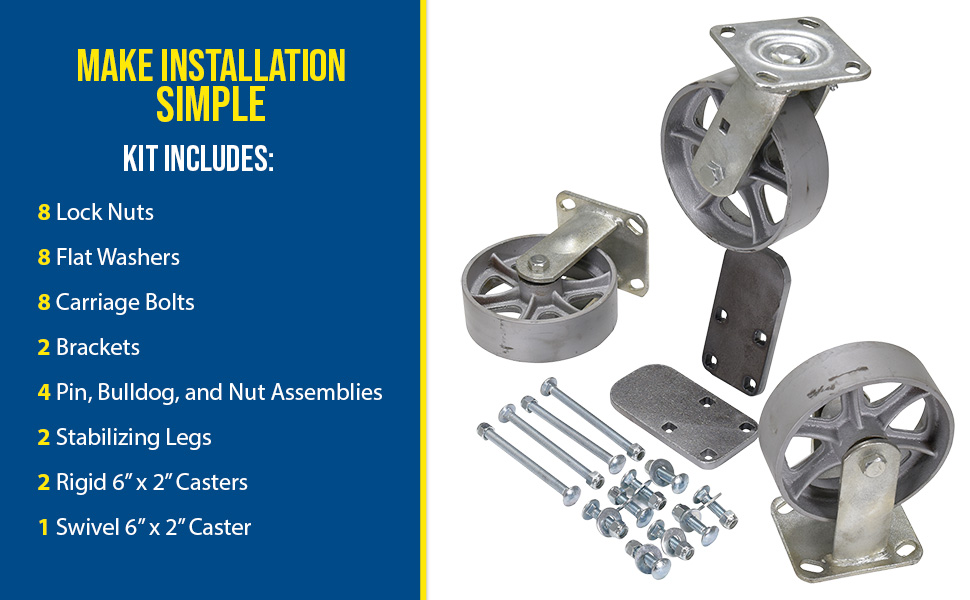

H-CK3-SC6-2 Warranty PDF 6"x2" 3,600 Semi-Steel 3 27
H-CK3-MR6-2 Warranty PDF 6"x2" 1,800 Mold-On-Rubber 3 25

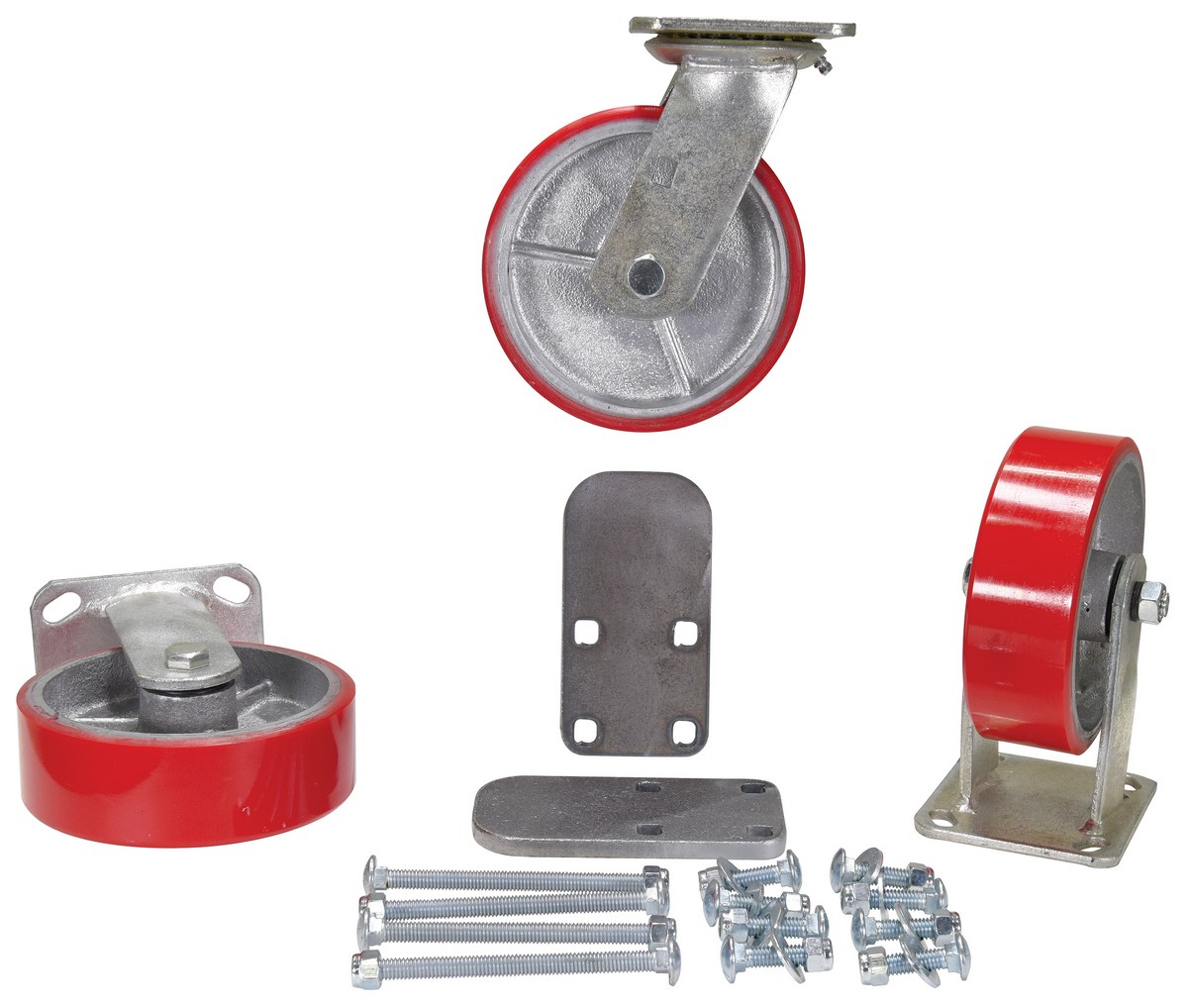

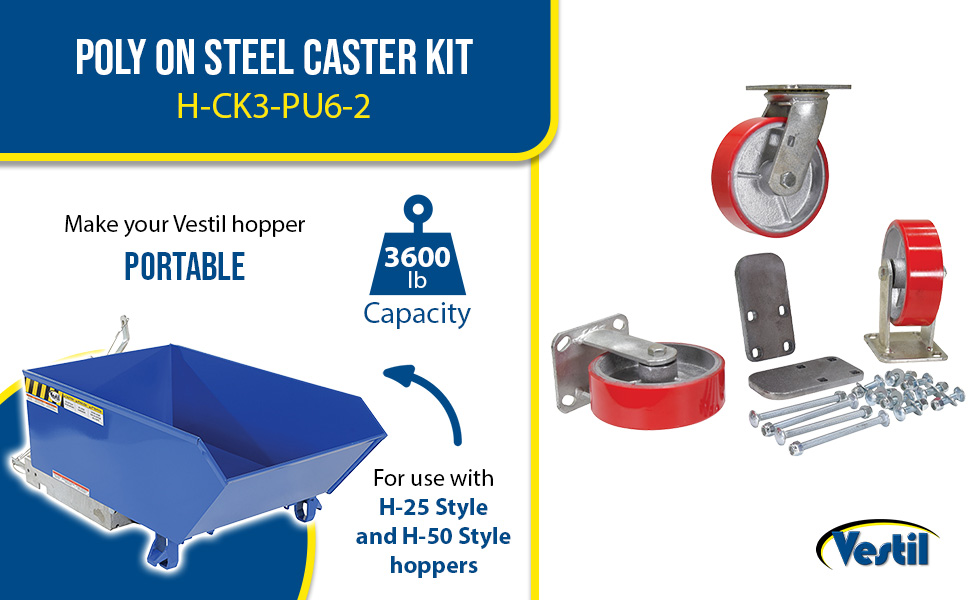

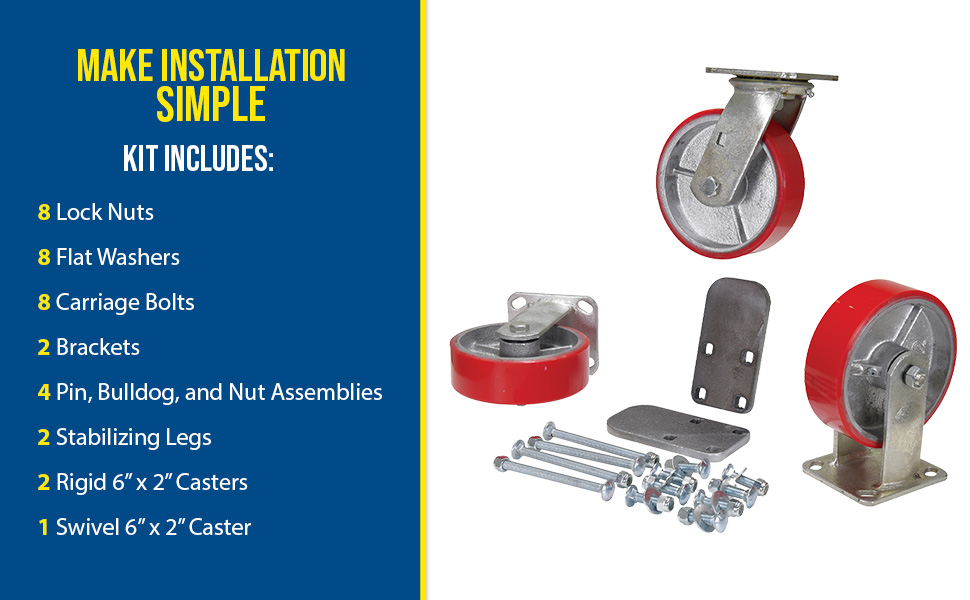

H-CK3-PU6-2 Warranty PDF 6"x2" 3,600 Poly-On-Steel 3 26
H-CK3-GFN6-2 Warranty PDF 6"x2" 3,600 Glass Filled Nylon 3 17

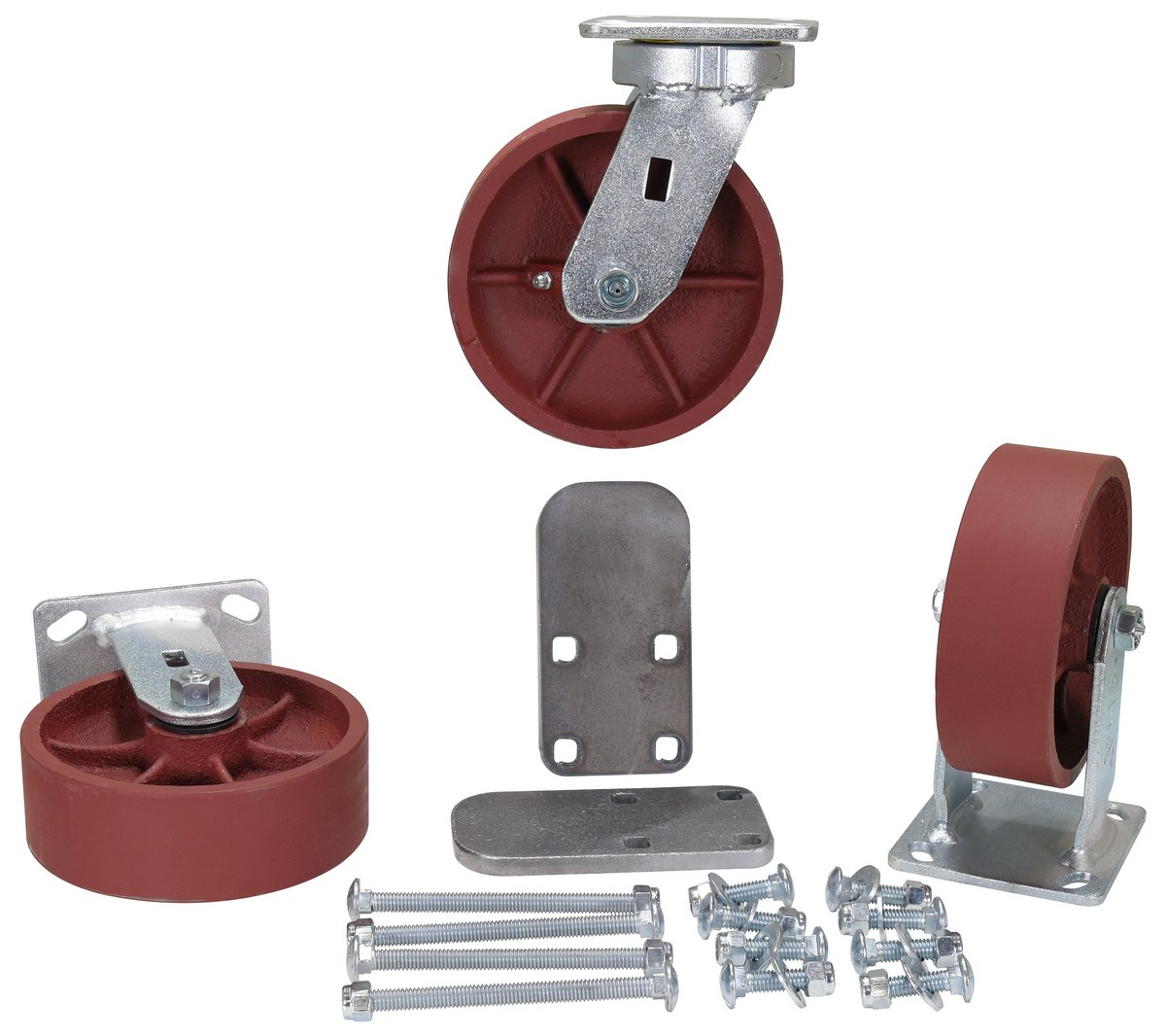

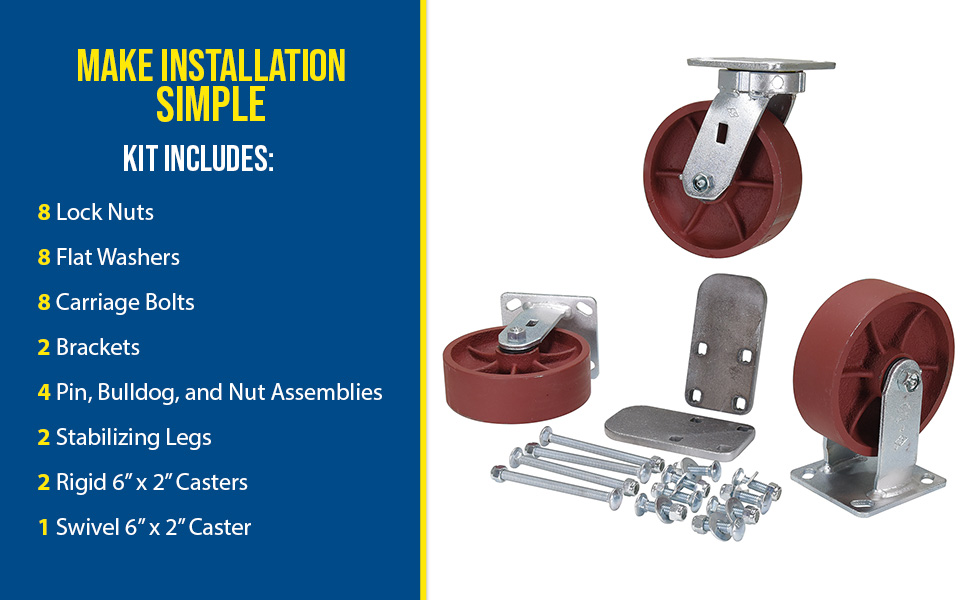

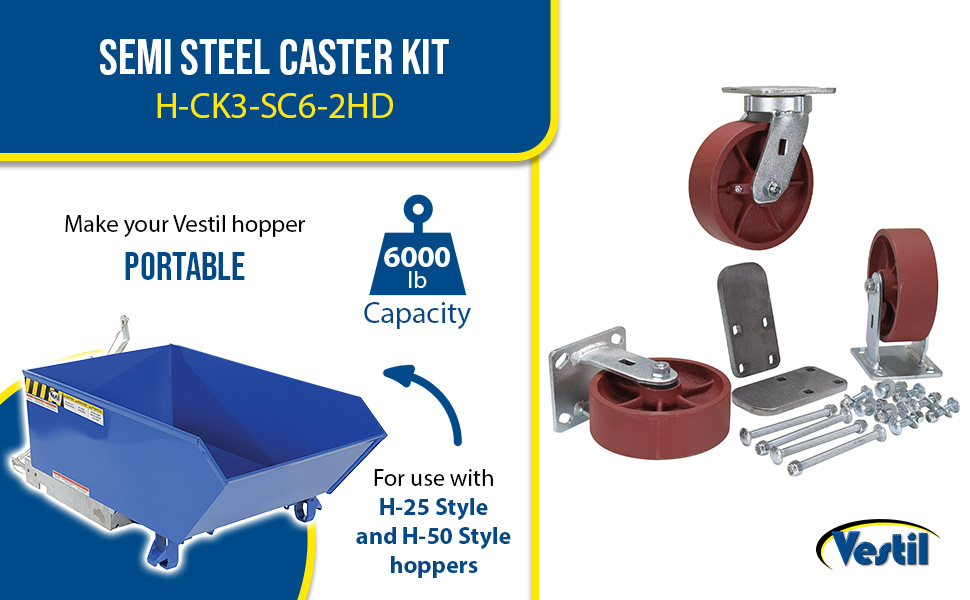

H-CK3-SC6-2HD Warranty PDF 6"x2" 6,000 Ductile Steel 3 35
Caster for H-Style Hoppers, -100 & -150
H-CK4-C11C
Warranty PDF 6"x2" 2,400 Thermoplastic Rubber 4 24

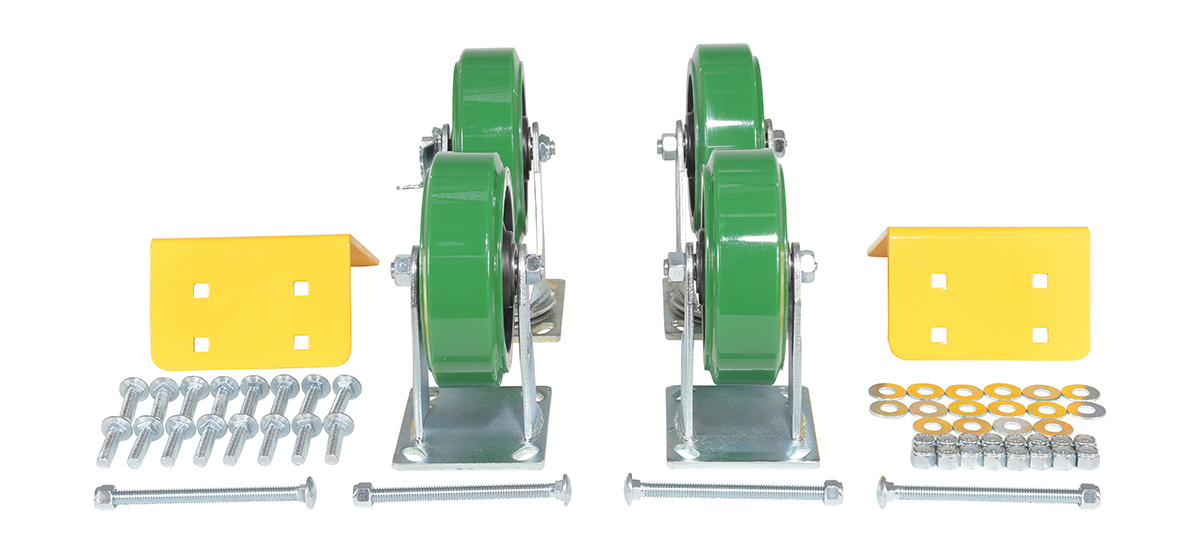

H-CK4-C12C Warranty PDF 6"x2" 3,600 Pure Polyurethane 4 24
H-CK4-C13C Warranty PDF 6"x2" 5,000 Polyurethane 4 24
H-CK4-C23C Warranty PDF 6"x2" 8,000 Glass Filled Nylon 4 30
H-CK4-C24C Warranty PDF 6"x2" 5,000 Glass Filled Nylon 4 28
H-CK4-SC6-2 Warranty PDF 6"x2" 4,800 Semi-Steel 4 31

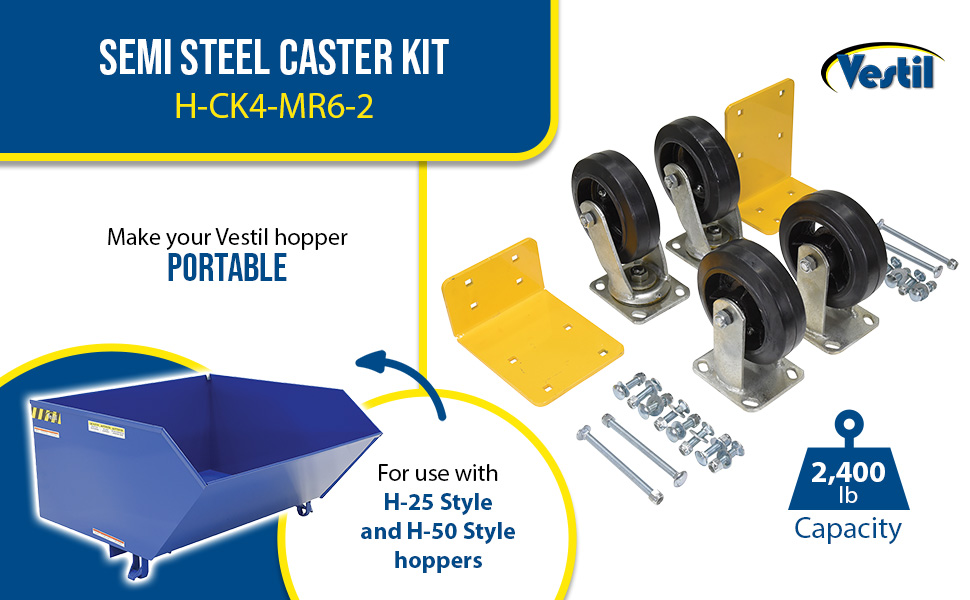

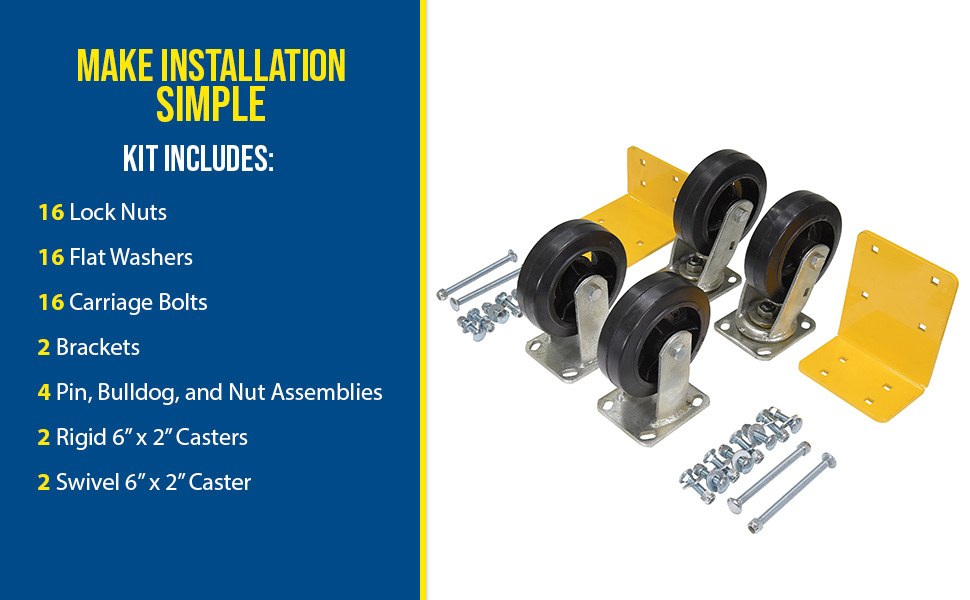

H-CK4-MR6-2 Warranty PDF 6"x2" 2,400 Mold-On-Rubber 4 28
H-CK4-PU6-2 Warranty PDF 6"x2" 4,800 Poly-On-Steel 4 30
H-CK4-GFN6-2 Warranty PDF 6"x2" 4,800 Glass Filled Nylon 4 18
H-CK4-SC6-2HD Warranty PDF 6"x2" 8,000 Ductile Steel 4 42
Caster for D-Style Hoppers
D-CK4-C15C Warranty PDF 6"x2" 6,000 Dual Polyurethane 4 7.2
D-CK4-C15D Warranty PDF 8"x2" 8,000 Dual Polyurethane 4 8.75
D-CK4-C23C Warranty PDF 6"x2" 8,000 Glass Filled Nylon 4 5.72
D-CK4-C24C Warranty PDF 8"x2" 5,000 Glass Filled Nylon 4 5.43

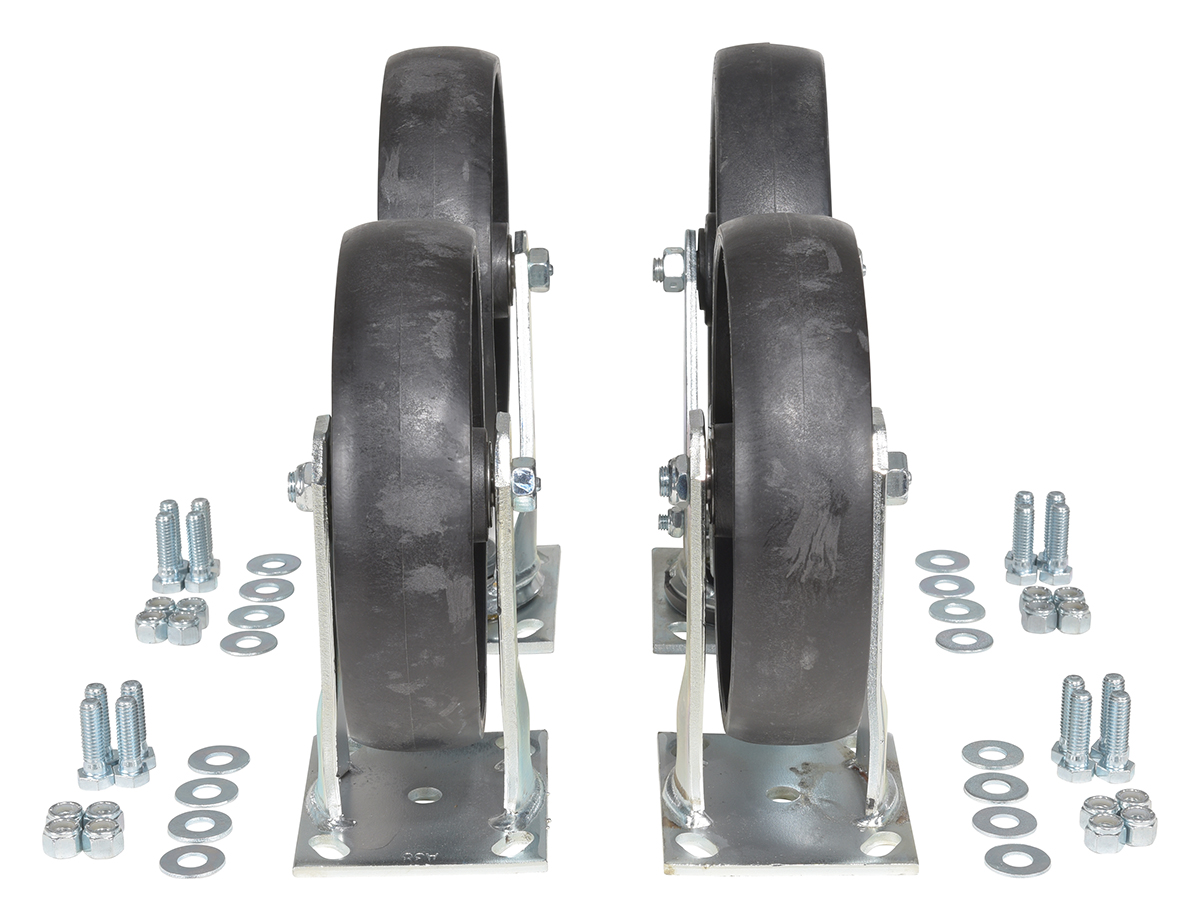

D-CK4-C24D Warranty PDF 8"x2" 5,000 Glass Filled Nylon 4 5.88
D-CK4-C32C Warranty PDF 6"x2" 2,400 Thermoplastic Rubber (TPR) 4 6
D-CK4-C32D Warranty PDF 8"x2" 2,400 Thermoplastic Rubber (TPR) 4 -
D-CK4-C33C Warranty PDF 6"x2" 3,600 Pure Polyurethane 4 6
D-CK4-C33D Warranty PDF 8"x2" 4,000 Pure Polyurethane 4 7.25
D-CK4-C34C Warranty PDF 6"x2" 6,000 Elastic Polyurethane 4 6.75

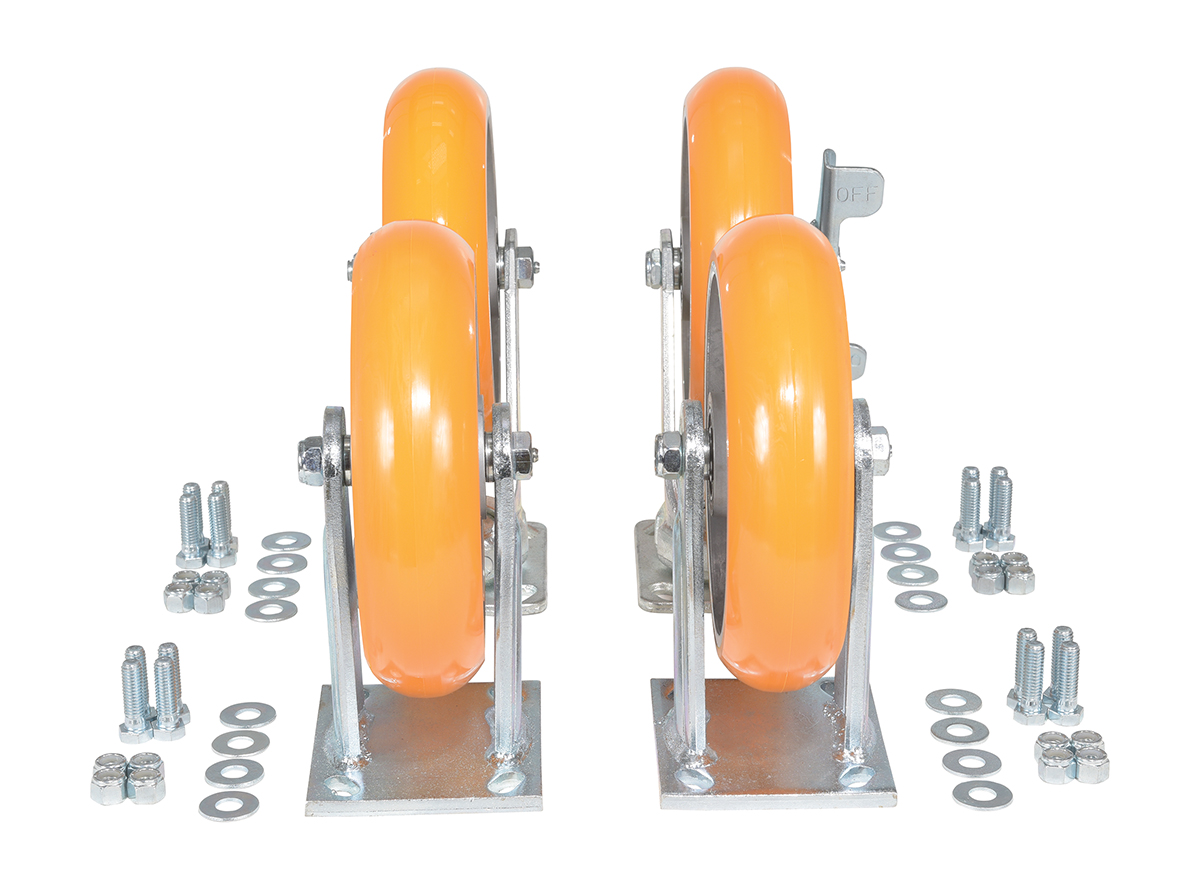

D-CK4-C34D Warranty PDF 8"x2" 8,000 Elastic Polyurethane 4 8.25

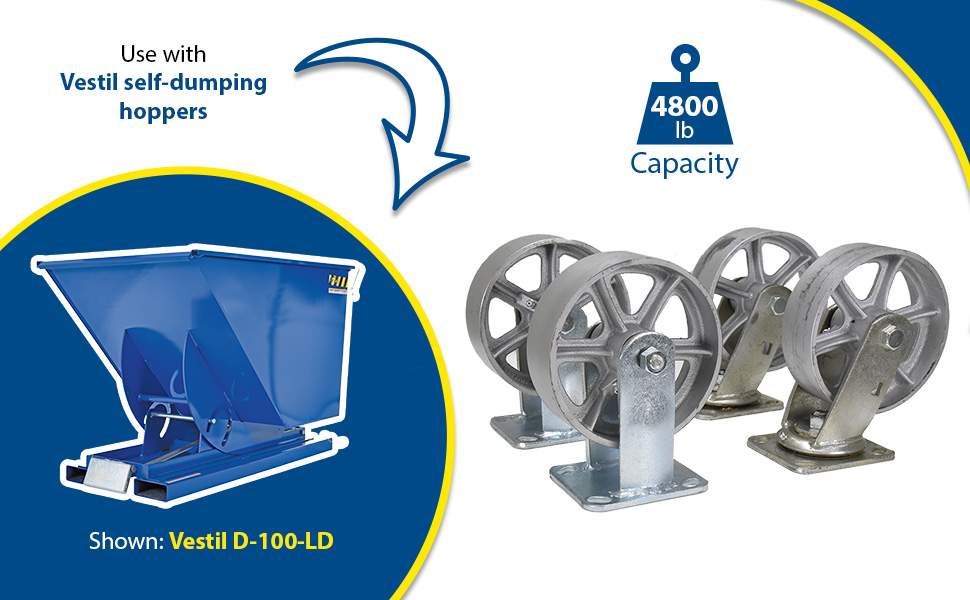

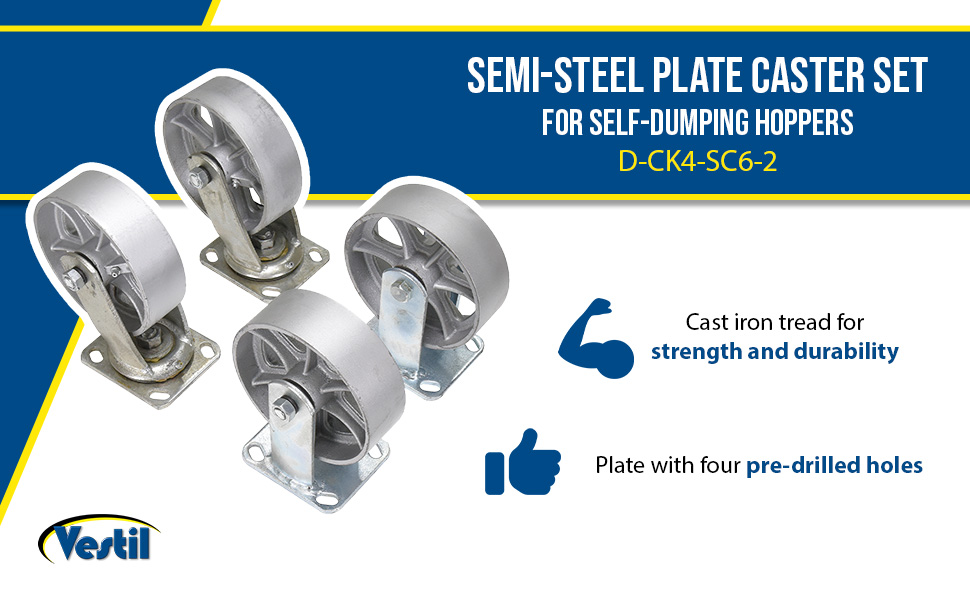

D-CK4-SC6-2 Warranty PDF 6"x2" 4,800 Semi-Steel 4 19

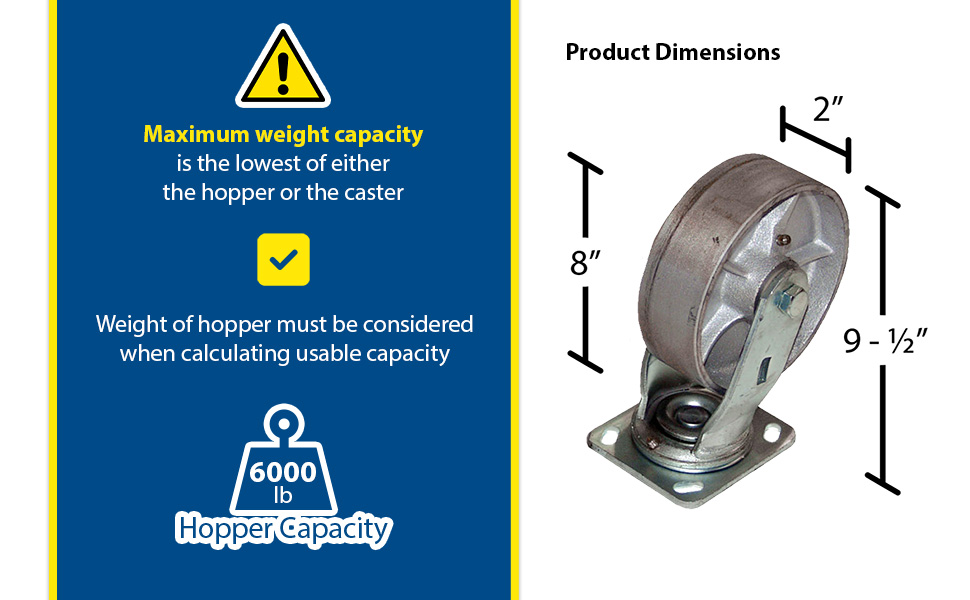

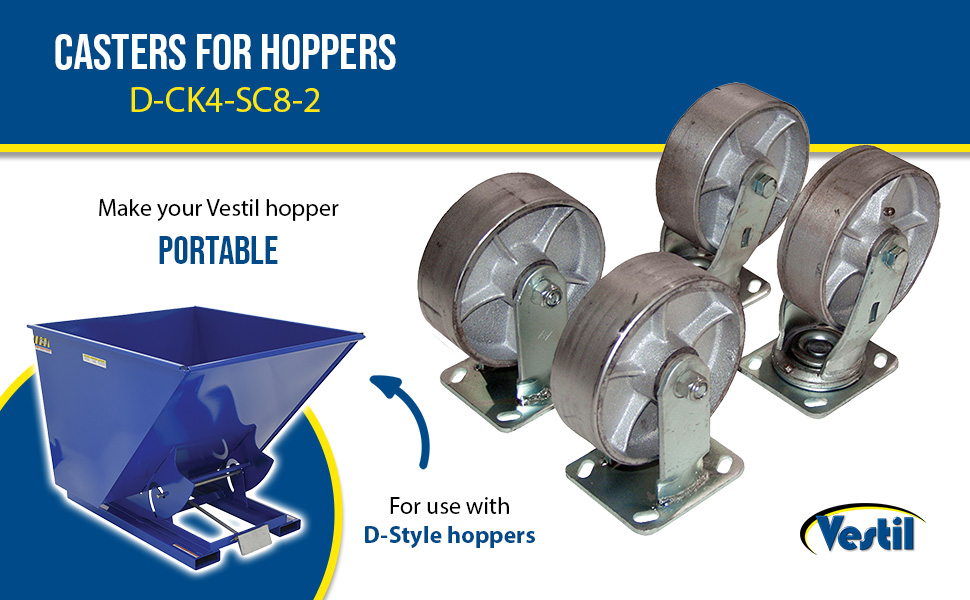

D-CK4-SC8-2 Warranty PDF 8"x2" 4,800 Semi-Steel 4 22
D-CK4-MR6-2 Warranty PDF 6"x2" 2,400 Mold-On-Rubber 4 29
D-CK4-MR8-2 Warranty PDF 8"x2" 2,400 Mold-On-Rubber 4 37
D-CK4-PU6-2 Warranty PDF 6"x2" 4,800 Poly-On-Steel 4 31
D-CK4-PU8-2 Warranty PDF 8"x2" 5,000 Poly-On-Steel 4 42

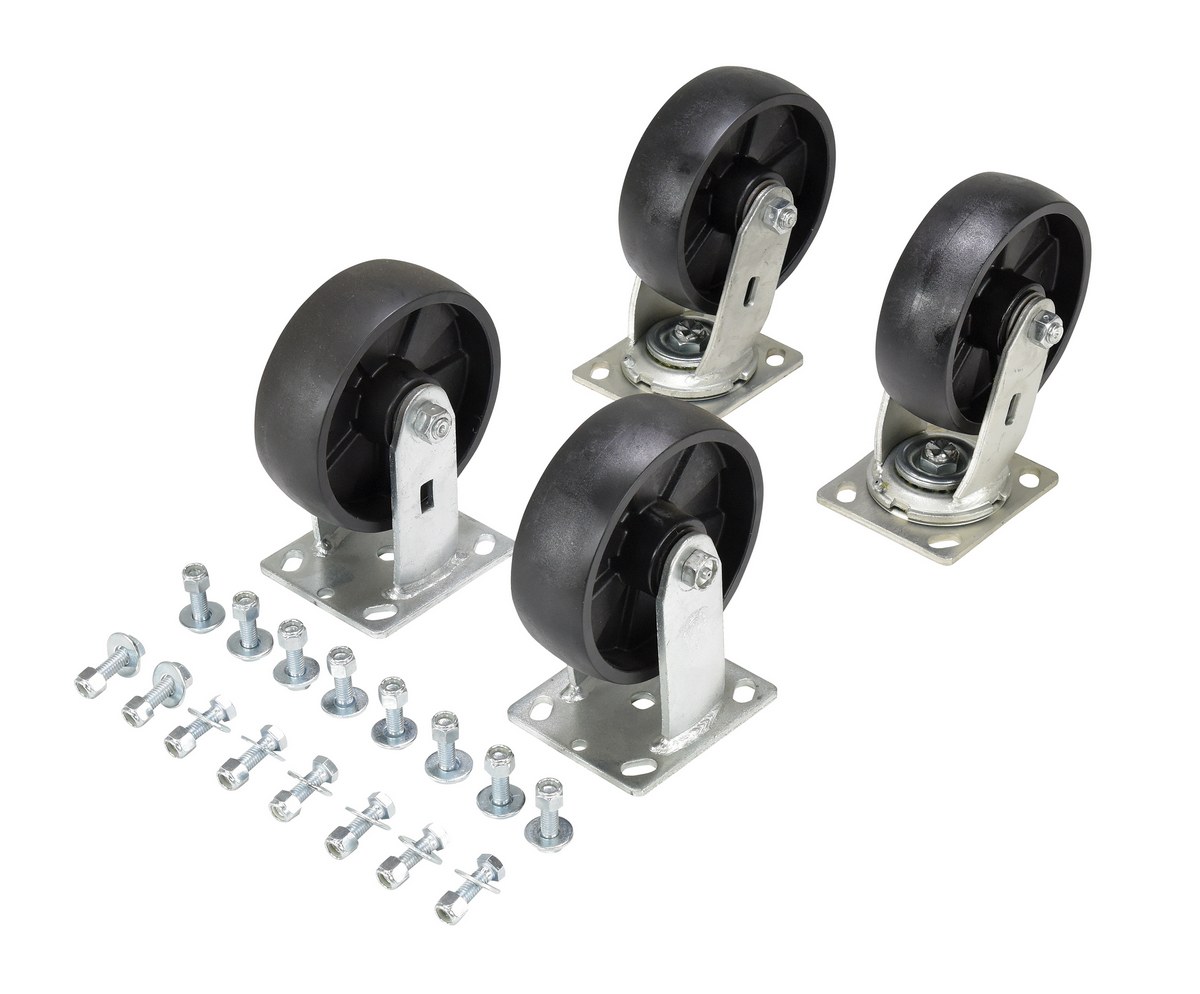

D-CK4-GFN6-2 Warranty PDF 6"x2" 4,800 Glass Filled Nylon 4 19
D-CK4-GFN8-2 Warranty PDF 8"x2" 5,000 Glass Filled Nylon 4 22
D-CK4-SC6-2HD Warranty PDF 6"x2" 8,000 Ductile Steel 4 43

**Weight of hopper must be considered when calculating usable capacity**

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

D-CK4-C15C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster

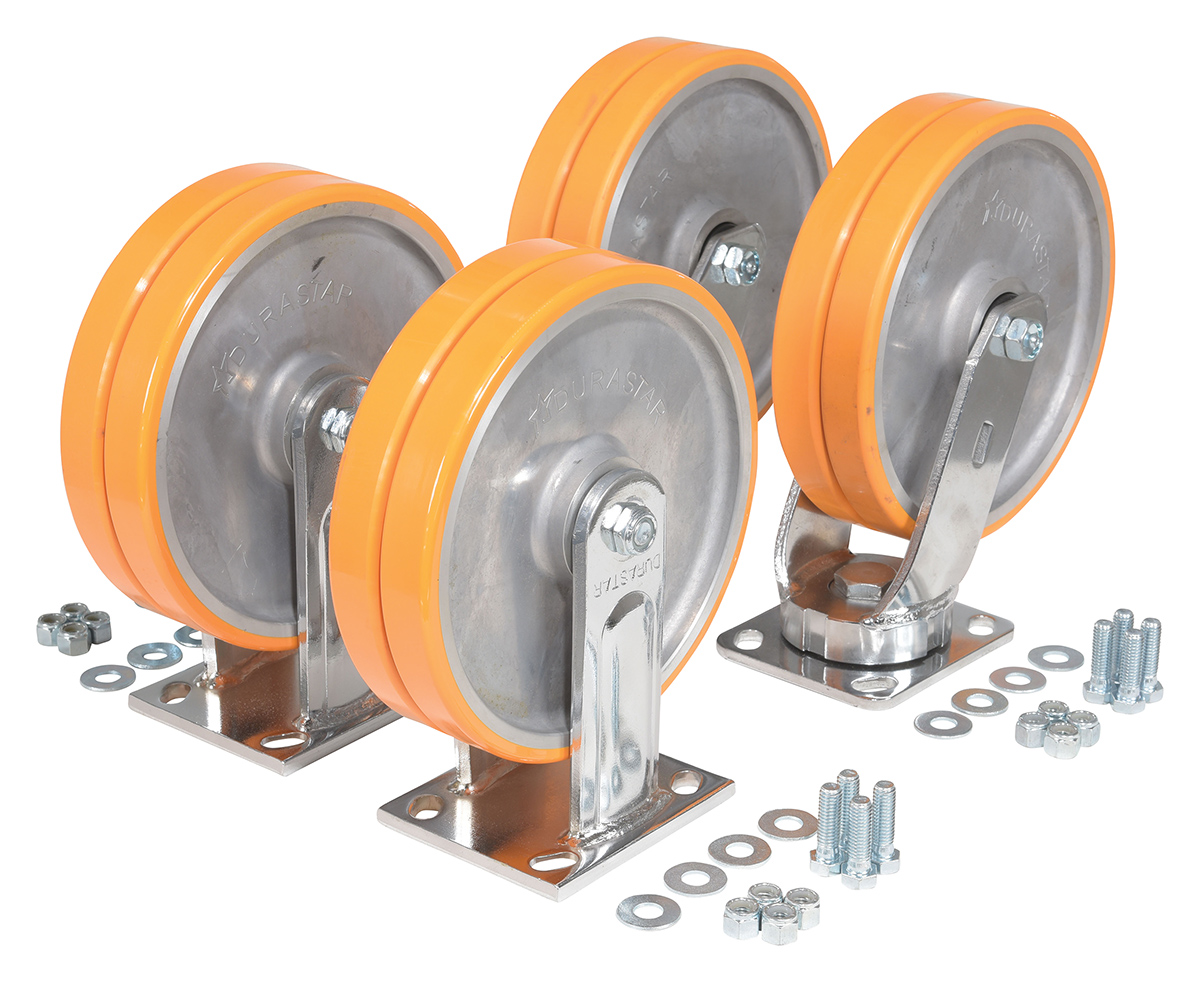

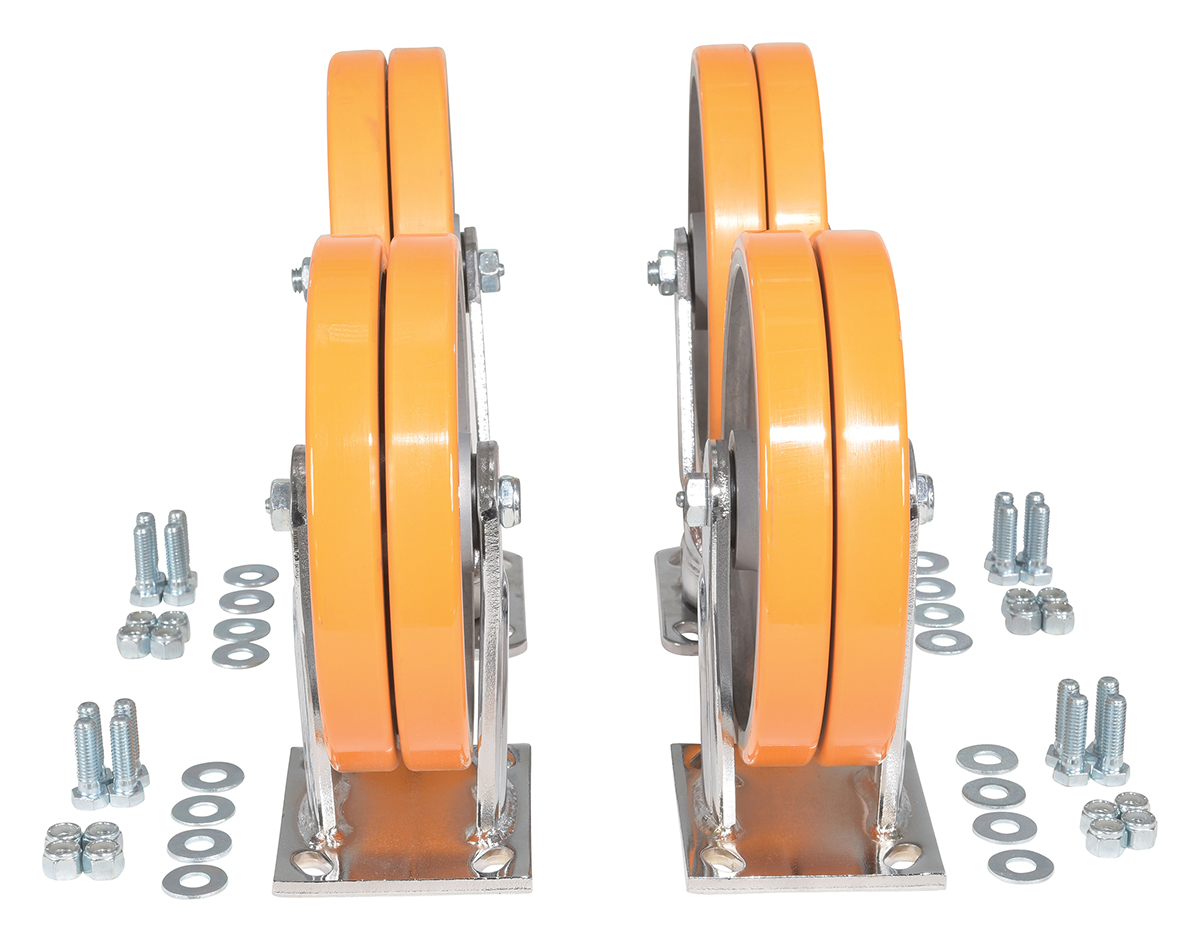

D-CK4-C15D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster

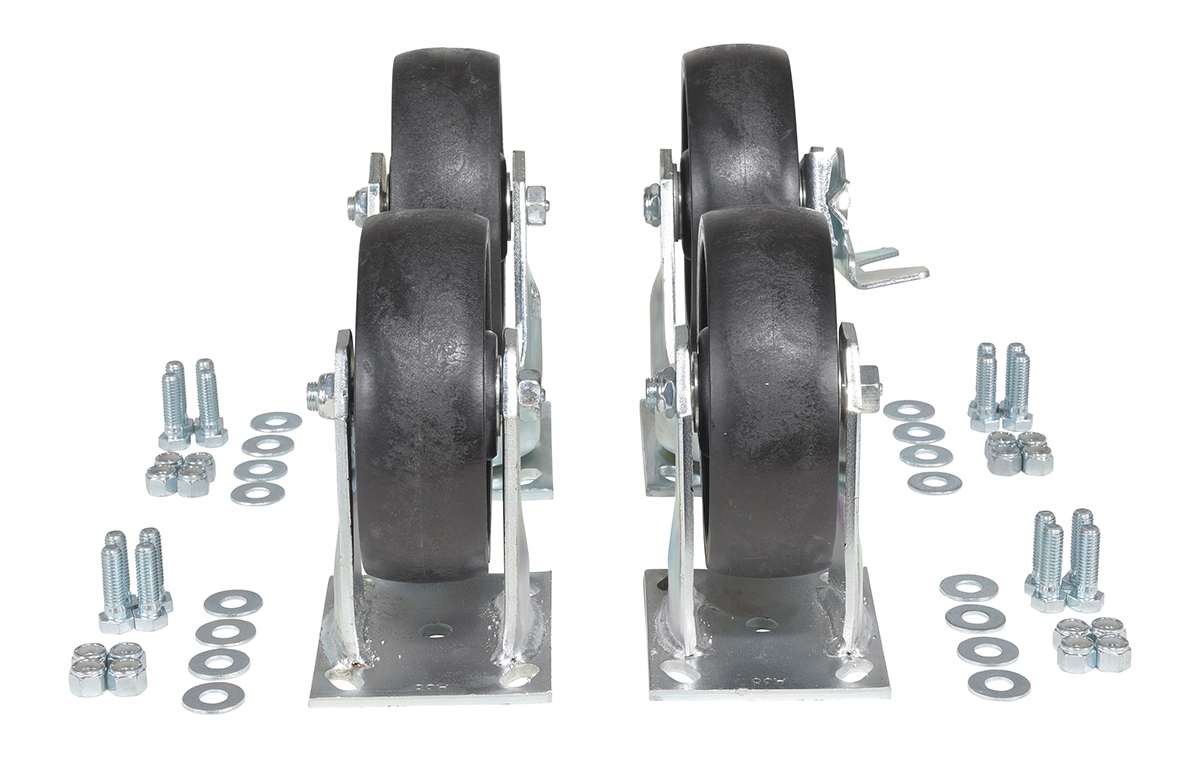

D-CK4-C23C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster

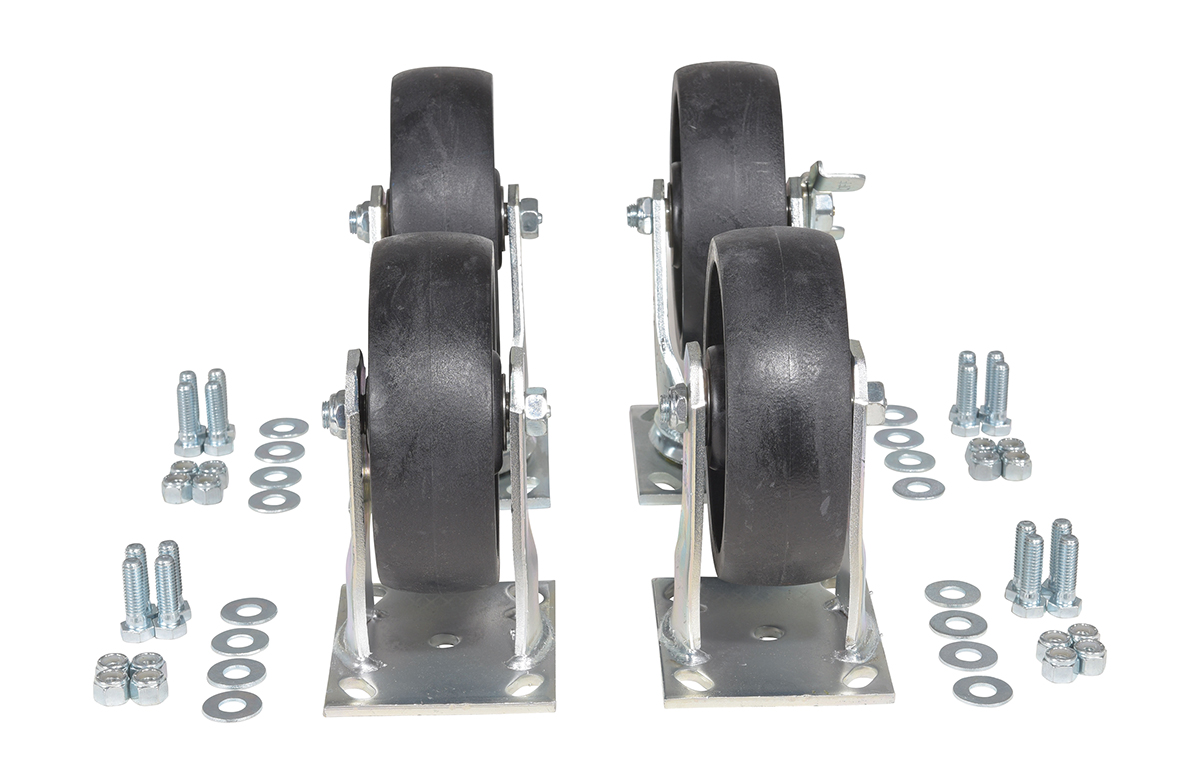

D-CK4-C24C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C24D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C32C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2400
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 2400
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C32D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2400
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 2400
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C33C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 3600
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C33D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 4000
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C34C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster

D-CK4-C34D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster

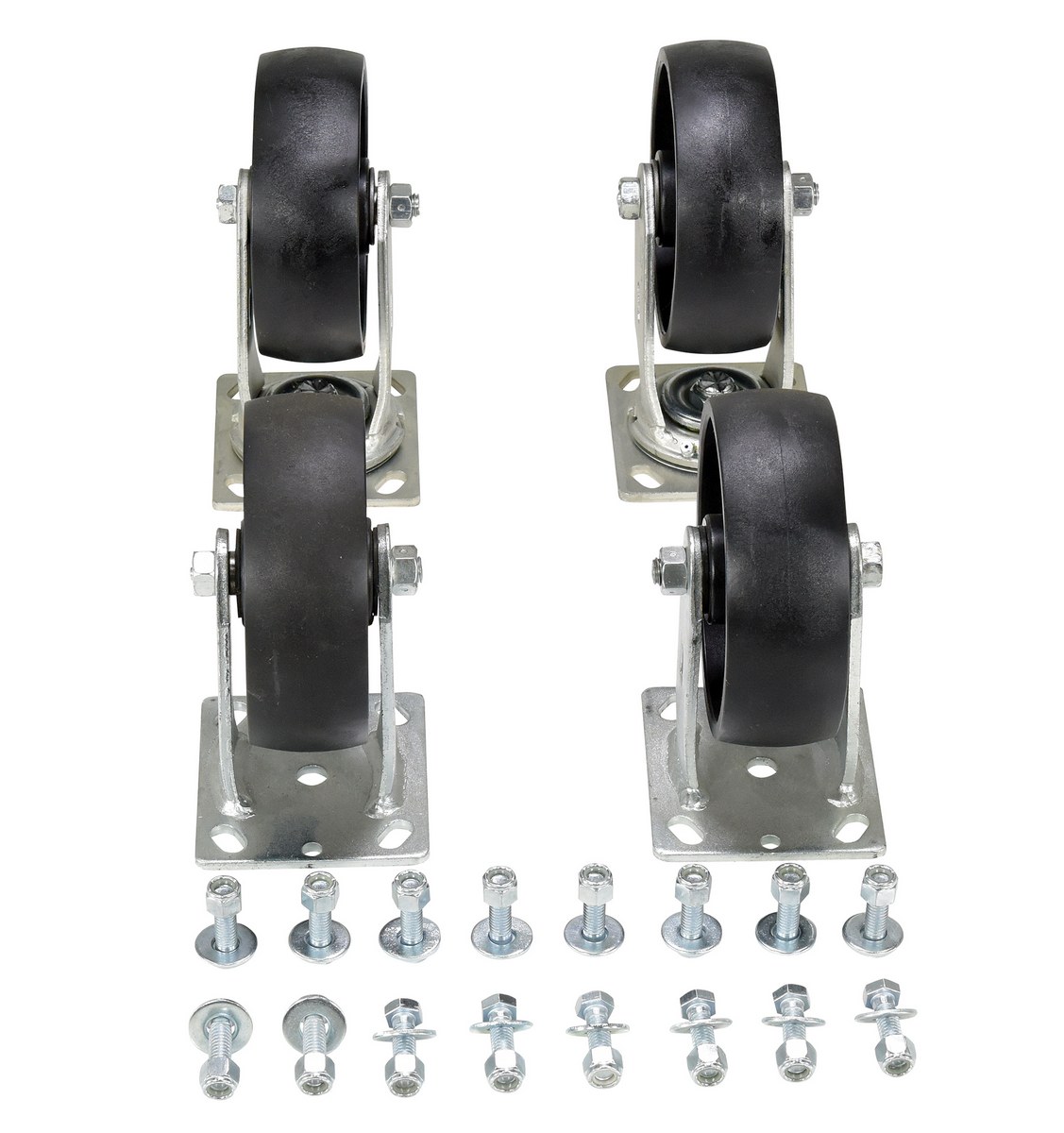

D-CK4-GFN6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

D-CK4-GFN8-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

D-CK4-MR6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

D-CK4-MR8-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

D-CK4-PU6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

D-CK4-PU8-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

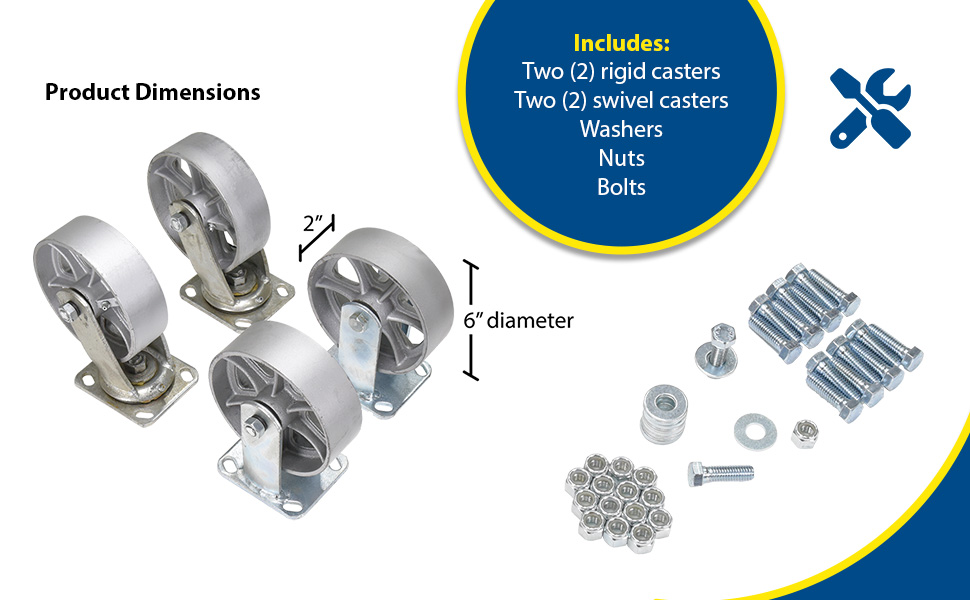

D-CK4-SC6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

D-CK4-SC6-2HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

D-CK4-SC8-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

H-CK3-C11C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Swivel Caster Qty: 1
Uniform Capacity (lb.): 1800
Swivel Caster Qty: 1

H-CK3-C12C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2700
Swivel Caster Qty: 1
Uniform Capacity (lb.): 2700
Swivel Caster Qty: 1

H-CK3-C13C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3750
Swivel Caster Qty: 1
Uniform Capacity (lb.): 3750
Swivel Caster Qty: 1

H-CK3-C23C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Swivel Caster Qty: 1
Uniform Capacity (lb.): 6000
Swivel Caster Qty: 1

H-CK3-C24C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3750
Swivel Caster Qty: 1
Uniform Capacity (lb.): 3750
Swivel Caster Qty: 1

H-CK3-GFN6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

H-CK3-MR6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
Uniform Capacity (lb.): 1800
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

H-CK3-PU6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

H-CK3-SC6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
Uniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

H-CK3-SC6-2HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per caster (lb.): 6000
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
Uniform Capacity per caster (lb.): 6000
Caster Quantity/Diameter/Width (in.): (3) 6 x 2

H-CK4-C11C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2400
Swivel Caster Qty: 1
Uniform Capacity (lb.): 2400
Swivel Caster Qty: 1

H-CK4-C12C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3600
Swivel Caster Qty: 1
Uniform Capacity (lb.): 3600
Swivel Caster Qty: 1

H-CK4-C13C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Swivel Caster Qty: 1
Uniform Capacity (lb.): 5000
Swivel Caster Qty: 1

H-CK4-C23C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8000
Swivel Caster Qty: 1
Uniform Capacity (lb.): 8000
Swivel Caster Qty: 1

H-CK4-C24C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Swivel Caster Qty: 1
Uniform Capacity (lb.): 5000
Swivel Caster Qty: 1

H-CK4-GFN6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

H-CK4-MR6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

H-CK4-PU6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

H-CK4-SC6-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

H-CK4-SC6-2HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Uniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2

Casters For Self-Dumping Hoppers (D & H) PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


D-CK4-C15C

D-CK4-C15D

D-CK4-C23C

D-CK4-C24C

D-CK4-C24D

D-CK4-C32C

D-CK4-C32D

D-CK4-C33C

D-CK4-C33D

D-CK4-C34C

D-CK4-C34D

H-CK3-C11C

H-CK3-C12C

H-CK3-C13C

H-CK3-C23C

H-CK3-C24C

H-CK4-C11C

H-CK4-C12C

H-CK4-C13C

H-CK4-C23C

H-CK4-C24C

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Which caster should I use with the hopper?

A: The mold on rubber and poly on steel casters with their soft tread are quiet and ideal for uneven floors. The glass filled nylon casters provide a smoother roll. The semi-steel and ductile steel casters are the most durable. Your sales associate can help you match the capacity and size of the caster kits to your hopper.


Q: Which caster kits are compatible with the 1/3 cubic yard and 3/4 cubic yard hoppers?

A: The caster kit options with 3 casters would be compatible with the H-33 series and H-75 series hoppers.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Casters For Self-Dumping Hoppe...




Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.

H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"

D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"

R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.

**Weight of hopper must be considered when calculating usable capacity**


D-100-LD + D-CK4-GFN-2 + PLID-D-100




Model # Description Attributes Net Wt.
(lbs)
D-CK4-C15C D-CK4-C15CPolyurethane Caster Kit 6 in x 2 in 6000 lb Capacity OrangeUniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster
32
D-CK4-C15D D-CK4-C15DPolyurethane Caster Kit 8 in x 2 in 8000 lb Capacity OrangeUniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
42
D-CK4-C23C D-CK4-C23CGlass-Filled Nylon Caster Kit 6 in x 2 in 8000 lb Capacity BlackUniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
30
D-CK4-C24C D-CK4-C24CGlass-Filled Nylon Caster Kit 6 in x 2 in 5000 lb Capacity BlackUniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster
28
D-CK4-C24D D-CK4-C24DGlass-Filled Nylon Caster Kit 8 in x 2 in 4800 lb Capacity BlackUniform Capacity (lb.): 5000
Product Dimensions/Weight: 1 Rigid Caster
28
D-CK4-C32C D-CK4-C32CHi-Tech Thermoplastic Rubber Caster Kit 6 in x 2 in 2400 lb Capacity GrayUniform Capacity (lb.): 2400
Product Dimensions/Weight: 1 Rigid Caster
25
D-CK4-C32D D-CK4-C32DThermoplastic Rubber Caster Kit 8 in x 2 in 2700 lb Capacity GrayUniform Capacity (lb.): 2400
Product Dimensions/Weight: 1 Rigid Caster
31
D-CK4-C33C D-CK4-C33CPolyurethane Caster Kit 6 in x 2 in 3600 lb Capacity GreenUniform Capacity (lb.): 3600
Product Dimensions/Weight: 1 Rigid Caster
25
D-CK4-C33D D-CK4-C33DPolyurethane Caster Kit 8 in x 2 in 4000 lb Capacity GreenUniform Capacity (lb.): 4000
Product Dimensions/Weight: 1 Rigid Caster
31
D-CK4-C34C D-CK4-C34CElastic Polyurethane Caster Kit 6 in x 2 in 6000 lb Capacity ButterscotchUniform Capacity (lb.): 6000
Product Dimensions/Weight: 1 Rigid Caster
28
D-CK4-C34D D-CK4-C34DPolyurethane Caster Kit 8 in x 2 in 8000 lb Capacity ButterscotchUniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
34
D-CK4-GFN6-2 D-CK4-GFN6-2Glass Filled Nylon Caster Kit 6 In. x 2 In. 4800 Lb. Capacity BlackUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
19
D-CK4-GFN8-2 D-CK4-GFN8-2Glass Filled Nylon Caster Kit 8 In. x 2 In. 5000 Lb. Capacity BlackUniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
22
D-CK4-MR6-2 D-CK4-MR6-2Mold On Rubber Caster Kit 6 In. x 2 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
29
D-CK4-MR8-2 D-CK4-MR8-2Mold On Rubber Caster Kit 8 In. x 2 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
37
D-CK4-PU6-2 D-CK4-PU6-2Poly On Steel Caster Kit 6 In. x 2 In. 4800 Lb. Capacity RedUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
31
D-CK4-PU8-2 D-CK4-PU8-2Poly On Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity RedUniform Capacity (lb.): 5,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
42
D-CK4-SC6-2 D-CK4-SC6-2Semi Steel Caster Kit 6 In. x 2 In. 8000 Lb. Capacity SilverUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
32
D-CK4-SC6-2HD D-CK4-SC6-2HDDuctile Steel Caster Kit 6 In. x 2 In. 8000 Lb. Capacity MaroonUniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
43
D-CK4-SC8-2 D-CK4-SC8-2Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity SilverUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
42
H-CK3-C11C H-CK3-C11CThermoplastic Rubber Caster Kit 6 In. x 2 In. 1,800 Lb. Capacity GrayUniform Capacity (lb.): 1800
Swivel Caster Qty: 1
18
H-CK3-C12C H-CK3-C12CPolyurethane Caster Kit 6 In. x 2 In. 2,700 Lb. Capacity GreenUniform Capacity (lb.): 2700
Swivel Caster Qty: 1
18
H-CK3-C13C H-CK3-C13CElastic Polyurethane Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity ButterscotchUniform Capacity (lb.): 3750
Swivel Caster Qty: 1
18
H-CK3-C23C H-CK3-C23CGlass-Filled Nylon Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity BlackUniform Capacity (lb.): 6000
Swivel Caster Qty: 1
22
H-CK3-C24C H-CK3-C24CGlass-Filled Nylon Caster Kit 6 In. x 2 In. 3,750 Lb. Capacity BlackUniform Capacity (lb.): 3750
Swivel Caster Qty: 1
21
H-CK3-GFN6-2 H-CK3-GFN6-2Glass Filled Nylon Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity BlackUniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
17
H-CK3-MR6-2 H-CK3-MR6-2Mold On Rubber Caster Kit 6 In. x 2 In. 1,800 Lb. Capacity BlackUniform Capacity (lb.): 1800
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
25
H-CK3-PU6-2 H-CK3-PU6-2Poly On Steel Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity RedUniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
26
H-CK3-SC6-2 H-CK3-SC6-2Semi Steel Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity SilverUniform Capacity (lb.): 3600
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
27
H-CK3-SC6-2HD H-CK3-SC6-2HDDuctile Steel Caster Kit 6 In. x 2 In. 6,000 Lb. Capacity MaroonUniform Capacity per caster (lb.): 6000
Caster Quantity/Diameter/Width (in.): (3) 6 x 2
35
H-CK4-C11C H-CK4-C11CThermoplastic Rubber Caster Kit 6 In. x 2 In. 2,400 Lb. Capacity GrayUniform Capacity (lb.): 2400
Swivel Caster Qty: 1
24
H-CK4-C12C H-CK4-C12CPolyurethane Caster Kit 6 In. x 2 In. 3,600 Lb. Capacity GreenUniform Capacity (lb.): 3600
Swivel Caster Qty: 1
24
H-CK4-C13C H-CK4-C13CElastic Polyurethane Caster Kit 6 In. x 2 In. 5,000 Lb. Capacity ButterscotchUniform Capacity (lb.): 5000
Swivel Caster Qty: 1
24
H-CK4-C23C H-CK4-C23CGlass-Filled Nylon Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity BlackUniform Capacity (lb.): 8000
Swivel Caster Qty: 1
30
H-CK4-C24C H-CK4-C24CGlass-Filled Nylon Caster Kit 6 In. x 2 In. 5,000 Lb. Capacity BlackUniform Capacity (lb.): 5000
Swivel Caster Qty: 1
28
H-CK4-GFN6-2 H-CK4-GFN6-2Glass Filled Nylon Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity BlackUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
18
H-CK4-MR6-2 H-CK4-MR6-2Mold On Rubber Caster Kit 6 In. x 2 In. 2,400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
28
H-CK4-PU6-2 H-CK4-PU6-2Poly On Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity RedUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
30
H-CK4-SC6-2 H-CK4-SC6-2Semi Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity SilverUniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
31
H-CK4-SC6-2HD H-CK4-SC6-2HDDuctile Steel Caster Kit 6 In. x 2 In. 8,000 Lb. Capacity MaroonUniform Capacity per caster (lb.): 8,000
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
42


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
